Product description

Product Features

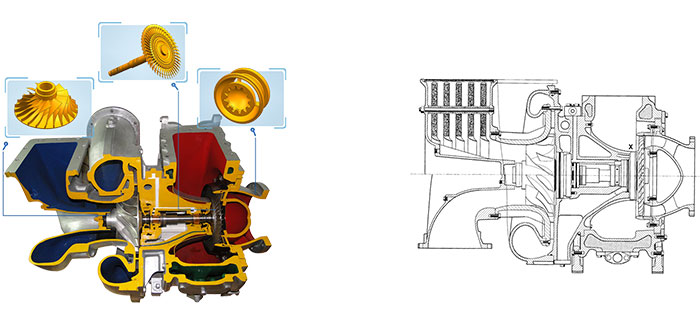

It consists of single-stage axial turbine and centrifugal compressor

The single unit can be matched with four stroke diesel engine of 1000~3200kw

The internal supporting sliding bearing for lubricating oil by engine

Gas inlet casing with uncooled type to ensure that it is not easy in the harsh condition of high-temperature

Gas outlet casing with water-cooled which can adjust the cooling water flow to control of gas exhaust temperature

The overall efficiency of T/C is 55%-60%, with the maximum pressure ratio of 4.0

The structure is compact and easy to overhaul be widely used in the railway locomotive with limited space, plateau exploration and the high load dredger

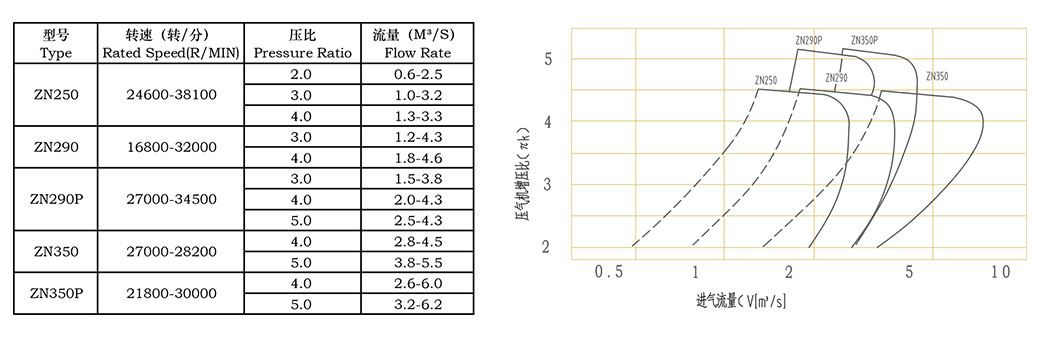

The main technical parameters
