Product description

Product Features

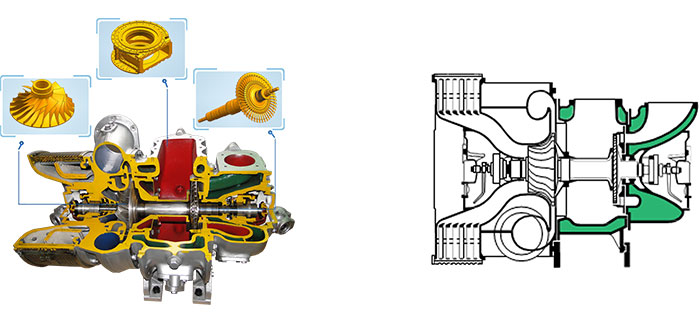

It consists of single-stage axial turbine and radial compressor

The single unit can be matched with medium speed two & four stroke diesel engine of 500~18000kw

The external supporting roller bearing shaft end centrifugal oil pump or gear oil pump self - supply structure

Gas inlet casing divide into water-cooling and uncooled two type to satisfied with best efficiency of diesel engine Can be achieved under different load conditions

The variation of turbine blade height is consistent with the changing area of the nozzle ring

The overall efficiency of T/C is 58%-62%, with the maximum pressure ratio of 4.0

It is widely used in Marine main engine and auxiliary engine for burning heavy fuel oil

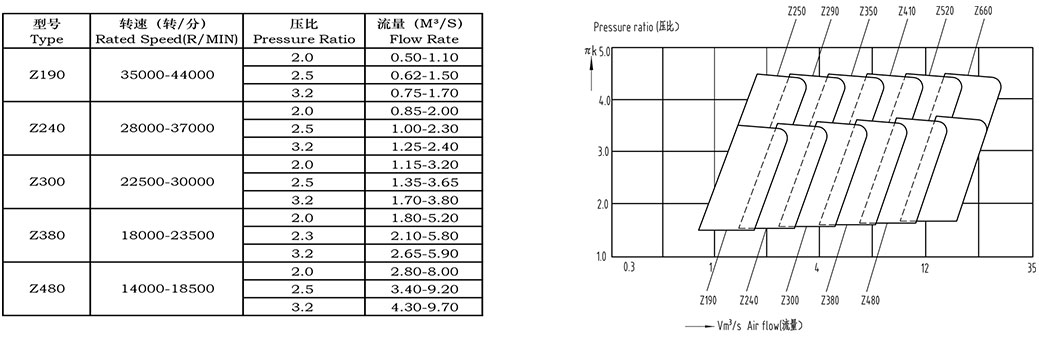

The main technical parameters
